YUAN High-Tech, the renowned solution provider of professional video in broadcasting, medical and surveillance markets etc., today introduces 4K M.2 (NGFF) video capture module SC560N1 HDMI, it contains HDMI 1.4b interface, which can provide 4Kp30 video capture.
YUAN also provide 2 × HDMI or 2 × SDI interfaces SC550N2 series capture card for consuming or professional market. All those new models are available in M2 2280 BM type.
Our product lines also include some more compact form factor, such as 2230, 2242, and 3030. These M.2 cards are available in two models, SC540 (software compression) and SC5A0( hardware compressed ) series, both contain following dimensions and interfaces.
Providing a more compact solution than MiniCard
M.2 is the latest expansion interface introduced by Intel® for internally mounted add-on cards.
Yuan also introduces different dimensions to M.2 series, from 22×30mm to 22×80mm, providing flexibility in size to various applications and projects.
Type B/M 2280 HDMI 1.4b Capture Card
Type B/M 2280 2 × HDMI Capture Card
Type B/M 2280 2 × SDI Capture Card
Type A/E 2230 HDMI Capture Card
Type A/E 3030 HDMI Capture Card
Type B/M 2242 HDMI Capture Card
Type B/M 2260 SD/HD-SDI Capture Card with SDI Loop Through

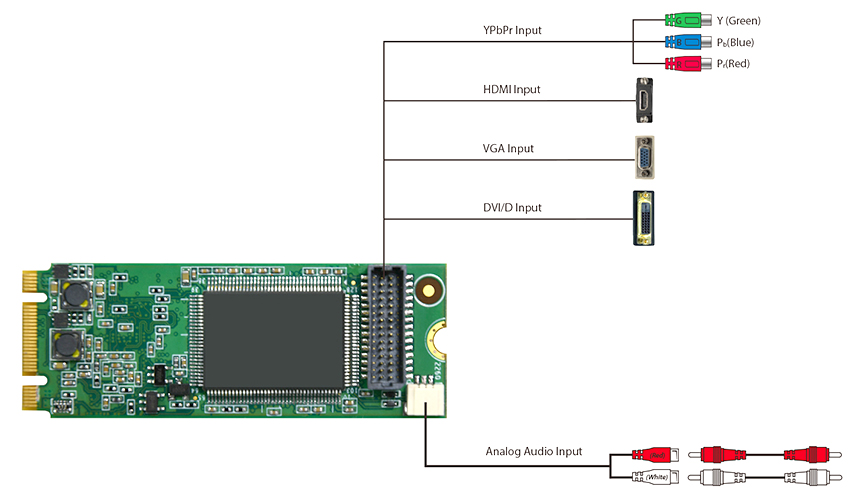

Type B/M 2260 DVI-I/YPbPr Capture Card
All products are compatible with Yuan full-function SDK and any demonstration applications.
Our SDK encompasses powerful function modules including streaming, video editing or 3D recording to ensure less R&D efforts and time-to market solutions. All sample codes are available to our customers to freely design and develop software/system upon integrating with Yuan capture cards.These diverse functions such as network streaming are made possible by Yuan SDK, supporting RTSP, RTMP, MMS, HLS, TS, NDI, WebRTC and ONVIF2.0 protocols for users to broadcast their captured video online.
All Yuan M.2 capture cards feature rather low power-consumption.
The small size makes it needless to save extra spaces for heat sink, especially suitable for NUC (Next Unit of Computing), AIO (All in One Computer) and other small form factor computers.
