Description

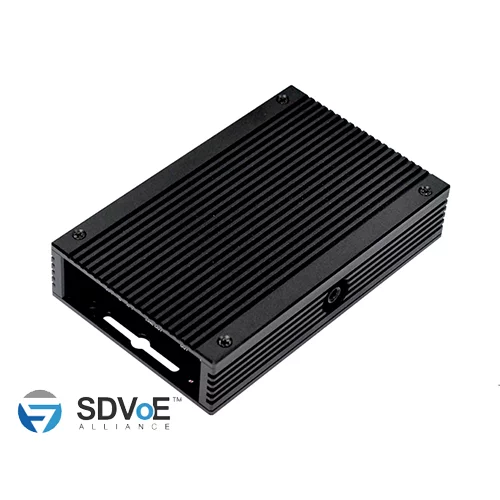

| Model | HDMI2.0 to SDVoE-C |
|---|---|
| Description | HDMI 2.0 to SDVoE with Audio and USB HID Converter |

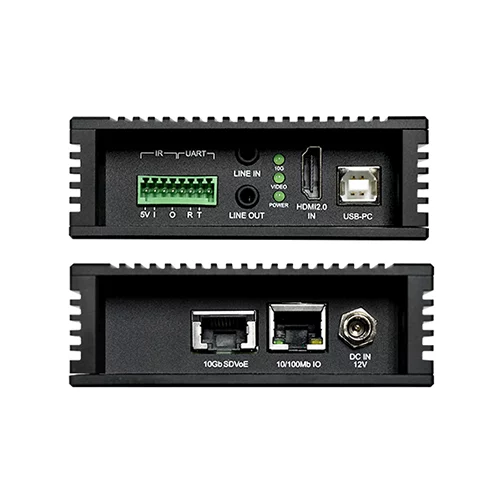

| Feature | 1 USB interface for PC connected 2 RJ45 Connectors for Video and Control Usage Rugged Case Bi-Direction Audio Transfer Supported IR Transfer Supported RS232 Transfer Supported |
| Input Interface | Video HDMI 2.0×1 Audio |
| Output Interface | Converted Video RJ45×1( For SDVoE output ) Audio |
| Supported Video Input Format | HDMI 2.0 4096×2160p@60/50fps 4096×2160p@30/25/24fps 3840×2160p@60/50fps 3840×2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format | RJ45 ( Converted ) Network Packet for Video Transfer |
| Audio Input Format | HDMI: 8 Channels, 24bit, 48KHz 3.5mm Phone Jack: 2 Channels, 24bit, 48KHz |
| Audio Output Format | SDVoE: Up to 8 Channels, 24bit, 48KHz 3.5mm Phone Jack: 2 Channels, 24bit, 48KHz |
| Plug & Play | V |
| DC In | 7.5V ~ 15V |
