Description

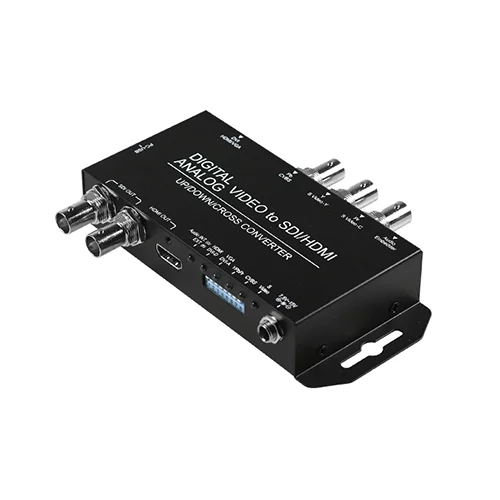

| Model | Multi to SDI/HDMI |
|---|---|
| Description | Convert from DVI-D/VGA or Component/S-Video/Composite to 3G/HD/SD-SDI and HDMI Output |
| Feature | Built-In Up/Down Conversion Engine Video Enhancement with Anti-Aliasing and 3D Deinterlacer Simultaneous 2×SDI Plus 1×HDMI Output Hot-Keys for Video Mode and Device Configurations Mini-USB Port for Configurations and Software Upgrade Region of Interest Test Pattern Test Label |

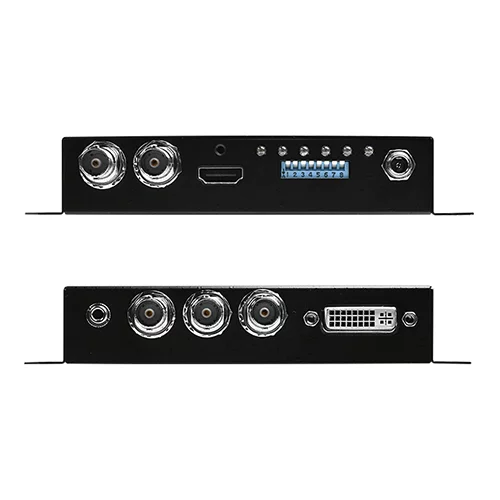

| Input Interface | DVI-I×1 ( Support DVI-D and VGA ) BNC×3 for Component / S-Video / Composite 3.5mm Phone Jack for Analog Audio |
| Output Interface | SDI×2 HDMI×1 |
| Supported Video Input Format | Composite / SVideo NTSC / PAL Component 480i, 576i, 480p, 576p 720p, 1080i, 1080p DVI / VGA 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz 1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz |
| Supported Video Output Format | SDI 1080p60/50, 1080i60/50, 1080p30/25/24, 720p60/50 1080p59.94, 1080i59.94, 720p59.94, 1080p29.97, 1080p23.98 525i, 625i |
| Audio Input Format | Stereo, 16bit, 48KHz |
| Audio Output Format | Stereo, 16bit, 48KHz |
| Plug & Play | |
| DC In | 7.5V ~ 15V |
