| Max. FPS |
720×480@30fps or 720×576@25fps |
| Recording Mode |
Software Compression, Real-Time Mode |

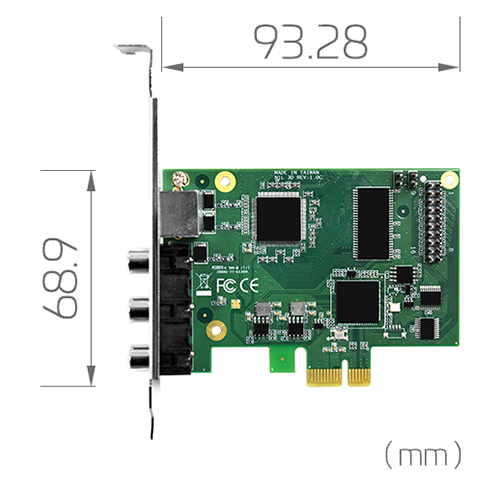

| Dimension |
93.28×68.9 ( mm ) |
| Interface |
PCIe×1 |
| Video Input |
1×Composite, 1×S-Video |
| Display Video Format |
YV12, NV12, YUY2, RGB24, RGB32 |
| Display Video Resolution |
NTSC
720×480@29.97fps ( D1 ) |
PAL
720×576@25fps ( D1 ) |
|
| Recording Video Format |
H.264 ( Software Compression ) |
| Display Video Resolution |
NTSC
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps |
PAL
720×576@25fps
704×288@25fps
480×288@25fps
352×288@25fps
240×144@25fps
176×144@25fps |
|
| Audio Input |
2×RCA |
| Audio Format |
Stereo / 16-Bit / 48000Hz |
| WatchDog |
|
| Multiple Cards |
∞ |
| SDK |
Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
|
System Requirement |
| OS Support |
Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
