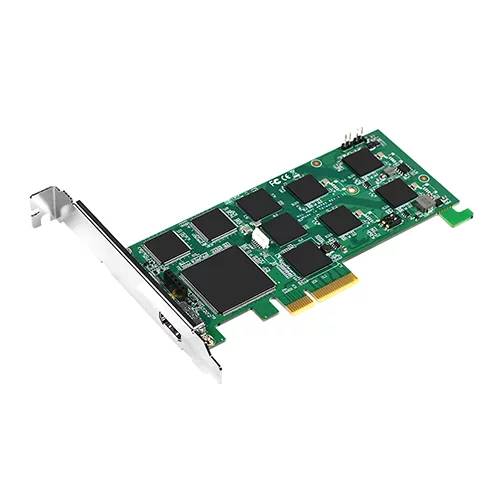

1 Channel 4K60 HDMI2.0 Low Profile PCIe Capture Card - SC560N1-LV HDMI 2.0

    For further assistance or to receive an offer for this product, please fill out the contact form below.

    Company/Organisation

    Your Name

    Your Email

    Country

    Product Name

    Market Application

    Your Message

    By clicking Send, you agree to our Terms and Data Use Policy.

    SKU: SC560N1-LV-HDMI2 Categories: , Tags: , , ,

    Description

    Model SC560N1-LV HDMI2
    Max. FPS 4096×2160p@60/50fps in → 4096×2160p@60/50fps out
    1920×1080p@144/120/100fps in → 1920×1080p@144/120/100fps out
    Recording Mode Software Compression, Real-Time Mode
    Dimension 144.75×68.9 ( mm )
    Interface PCIe×4 ( Gen2 )

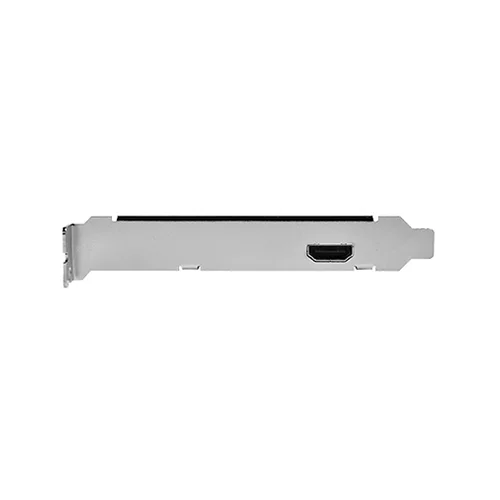

    Video Input 1×HDMI 2.0
    Display Video Format YV12, NV12, YUY2, RGB24, RGB32
    Video RAW Data Resolution HDMI 2.0
    4096×2160@60/50/30/25/24fps
    3840×2160@60/50/30/25/24fps
    2560×1600@120/85/75/60fps
    2560×1440p@60fps
    1920×1440@120fps
    1856×1392@120fps
    2048×1152@60fps
    1920×1200p@60fps
    1920×1080p@144/120/100fps
    1920×1080p@60/50fps
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps
    1280×1024p@60fps
    1280×960p@60fps
    1024×768p@60fps
    800×600p@60fps
    640×480p@60fps
    720×480p@60fps
    720×576p@50fps
    720×480i@60fps
    720×576i@50fps
    Recording Video Format H.264 ( Software Compression )
    Recording Video Resolution HDMI 2.0
    4096×2160@60/50/30/25/24fps
    3840×2160@60/50/30/25/24fps
    2560×1600@120/85/75/60fps
    2560×1440p@60fps
    1920×1440@120fps
    1856×1392@120fps
    2048×1152@60fps
    1920×1200p@60fps
    1920×1080p@144/120/100fps
    1920×1080p@60/50fps
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps
    1280×1024p@60fps
    1280×960p@60fps
    1024×768p@60fps
    800×600p@60fps
    640×480p@60fps
    720×480p@60fps
    720×576p@50fps
    720×480i@60fps
    720×576i@50fps
    Audio Input 1×HDMI Embedded Audio
    Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
    WatchDog
    Multiple Cards
    SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
    Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
    System Requirement
    OS Support Windows XP / Vista / Windows 7
    Windows 8 / Windows 8.1 / Windows 10
    Linux 2.6.14 or Higher
    ( 32-bit and 64-bit )

    Additional information

    Number of Input Channels

    1 Channel

    Color Precision

    NV12, RGB24, RGB32, YUY2, YV12

    Connection Interface

    PCIe

    Resolution

    4K 60p/50p

    Recording Mode

    Real Time Mode, Software Compression

    Video Input

    HDMI

    PCIe Form Factor

    PCIe Low Profile
