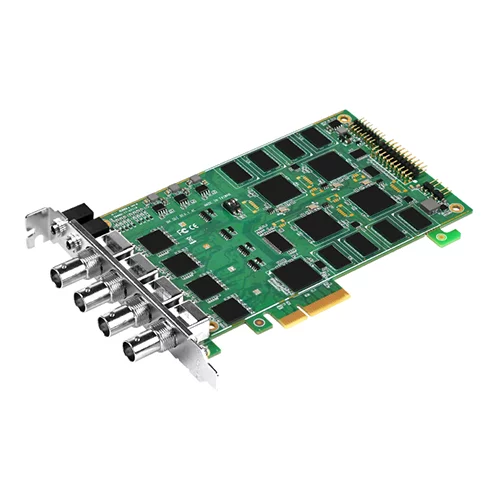

4 CHANNEL 1080P60 SDI PCIE CAPTURE CARD WITH HARDWARE COMPRESSION – SC5C0N4 SDI

4 CHANNEL 1080P60 SDI PCIE CAPTURE CARD WITH HARDWARE COMPRESSION - SC5C0N4 SDI

Description

Model	SC5C0N4 SDI
Max. FPS	1920×1080p@60/50fps in → 1920×1080p@60/50fps out
Recording Mode	Hardware Compression, Real-Time Mode
Dimension	157×101.01 ( mm )
Interface	PCIe×4 ( Gen2 )

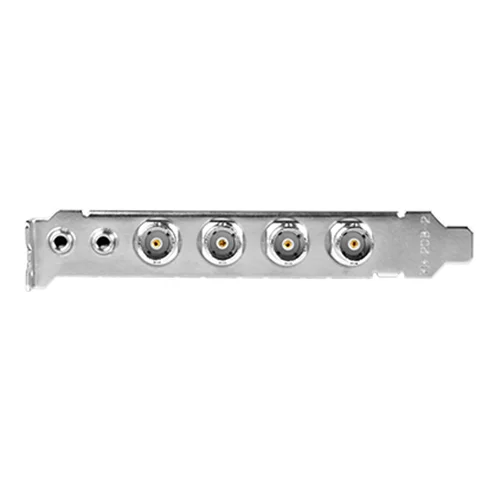

Video Input	4×SDI
Display Video Format	YV12, NV12, YUY2, RGB24, RGB32
Video RAW Data Resolution	3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Recording Video Format	H.264 ( Hardware Compression )
Recording Video Resolution	3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps
Audio Input	4×SDI Embedded Audio 2×3.5mm Audio
Audio Format	Stereo / 16-bit / 32000 ~ 48000Hz
WatchDog
Multiple Cards	∞
SDK	Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
	System Requirement
OS Support	Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )

Number of Input Channels	4 Channels
Color Precision	NV12, RGB24, RGB32, YUY2, YV12
Connection Interface	PCIe
Resolution	1080p60/50
Recording Mode	Hardware Compression, Real Time Mode
Video Input	SDI
PCIe Form Factor	PCIe Standard
