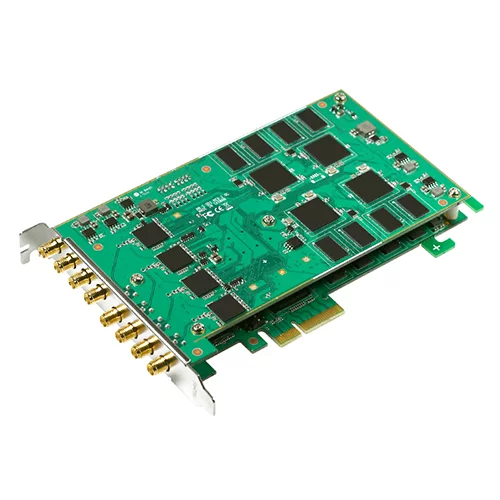

8 CHANNEL 1080P60 SDI PCIE CAPTURE CARD WITH HARDWARE COMPRESSION - SC5C0N8 SDI

    For further assistance or to receive an offer for this product, please fill out the contact form below.

    Company/Organisation

    Your Name

    Your Email

    Country

    Product Name

    Market Application

    Your Message

    By clicking Send, you agree to our Terms and Data Use Policy.

    SKU: SC5C0N8_SDI Categories: , Tags: ,

    Description

    Model SC5C0N8 SDI
    Max. FPS 1920×1080p@60/50fps in → 1920×1080p@60/50fps out
    Recording Mode Hardware Compression, Real-Time Mode

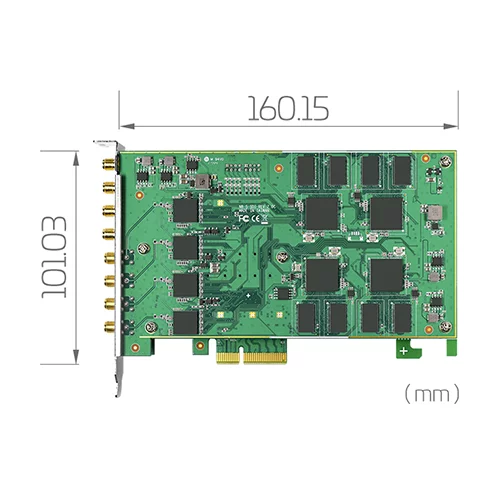

    Dimension 160.15×101.03 ( mm )
    Interface PCIe×4 ( Gen2 )

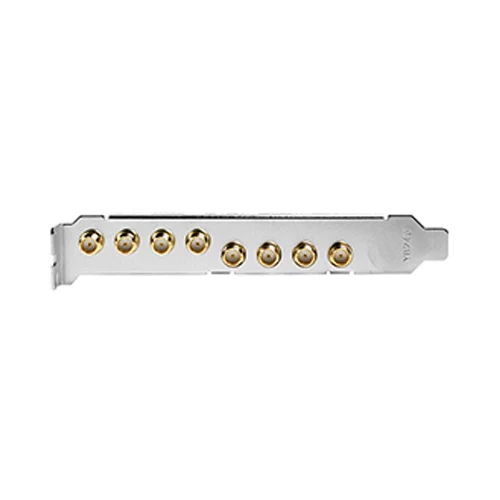

    Video Input 8×SDI
    Display Video Format YV12, NV12, YUY2, RGB24, RGB32
    Video RAW Data Resolution 3G-SDI
    1920×1080p@60/50fps

    HD-SDI
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps

    SD-SDI
    720×480i@60fps
    720×576i@50fps

    Recording Video Format H.264 ( Hardware Compression )
    Recording Video Resolution 3G-SDI
    1920×1080p@60/50fps

    HD-SDI
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps

    SD-SDI
    720×480i@60fps
    720×576i@50fps

    Audio Input 8×SDI Embedded Audio
    Audio Format Stereo / 16-bit / 32000 ~ 48000Hz
    WatchDog
    Multiple Cards
    SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
    Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
    System Requirement
    OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
    Linux 2.6.14 or Higher ( 32-bit and 64-bit )

    Additional information

    Number of Input Channels

    8 Channels

    Color Precision

    NV12, RGB24, RGB32, YUY2, YV12

    Connection Interface

    PCIe

    Resolution

    1080p60/50

    Recording Mode

    Hardware Compression, Real Time Mode

    Video Input

    SDI

    PCIe Form Factor

    PCIe Standard
