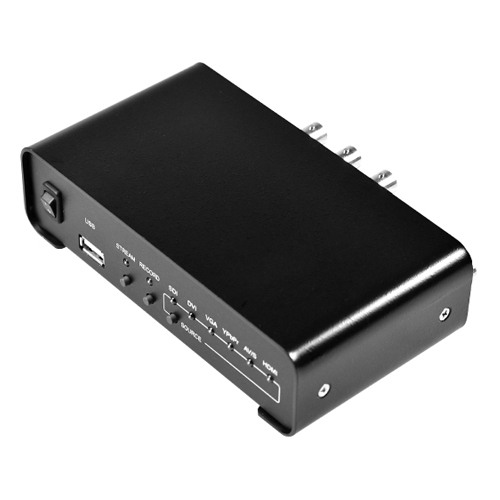

1 CHANNEL 1080P30 ALL-IN-ONE H.26X OVER IP STREAMING SOLUTION - SC601

    For further assistance or to receive an offer for this product, please fill out the contact form below.

    Company/Organisation

    Your Name

    Your Email

    Country

    Product Name

    Market Application

    Your Message

    By clicking Send, you agree to our Terms and Data Use Policy.

    SKU: SC601 Categories: , Tags: ,

    Description

    Model SC601
    Max. FPS 1920×1080@p60 / 50fps
    Recording Mode Hardware Compression, Real-Time Mode
    Input Interfaces Video
    1×BNC for 3G / HD / SD-SDI
    3×BNC for YPbPr / CVBS / S-Video
    1×DVI-I for DVI-D / HDMI and DVI-A / VGA
    1×HDMI

    Audio
    1×Stereo Audio Through
    1×RCA for Analog L / R Audio
    SDI / HDMI / DVI-D Embedded Audio
    1×3.5 mm Phone Jack

    Video Feature H.264 / AVC, Main / High Profile
    Configurable Bit Rate Up to 10Mbps

    Supported Resolutions:
    Input
    1920×1080 ( P60 / P50 )
    1920×1080 ( P30 / P25 )
    1920×1080 ( i60 / i50 )
    1280×720( P60 / P50 )
    720×576 ( P50 / I50 )
    720×480 ( P60 / I50 )

    Output
    1920×1080 ( P30 / P25 )
    1920×1080 ( i60 / i50 )
    1280×720( P60 / P50 )
    720×576 ( P50 / I50 )
    720×480 ( P60 / I60 )

    Audio Feature AAC-LC
    Configurable Bit Rate Range from 32Kbps to 384Kbps
    SDI Audio Sample Rate: 48KHz, 24bit
    HDMI Audio Sample Rate: 32~192KHz, 16~24bit
    Network Feature 1×RJ45 for 10 / 100Mbps Ethernet
    DHCP Client
    Supported Streaming Protocol TS Over TCP / UDP ( Unicast & Multicast )
    RTSP Over HTTP / TCP / UDP ( RTSP Elementary Stream )
    RTMP ( Local & Publish )
    HLS
    Support 3 Clients Under Bitrate 5Mbps
    Peripheral Features RS-485
    1×USB 2.0 Host for USB Storage
    Web UI for System Configuration
    Firmware Upgradable
    LED Indicator
    Status with Power Recycle
    Record Format MP4
    Color Options Black
    White
    System Requirement
    Power Supply DC 12V ( With DV Adapter )
    Power Consumption: 4.7W ( Test Under 1080P60 Iinput with Recording to USB Flash )

    Additional information

    Resolution

    1080p30/25

    Number of Input Channels

    1 Channel

    Recording Mode

    Hardware Compression, Real Time Mode

    Color

    Black, White

    Streaming Protocol

    RTSP / RTMP / TS / HLS

    Video Input

    All In One / Multi / HDV
