4 CHANNEL 1080P60 customizable All-IN-ONE H.26X OVER IP STREAMING SOLUTION - SC6D0N4 AIO

    For further assistance or to receive an offer for this product, please fill out the contact form below.

    Company/Organisation

    Your Name

    Your Email

    Country

    Product Name

    Market Application

    Your Message

    By clicking Send, you agree to our Terms and Data Use Policy.

    SKU: SC6D0N4_AIO Categories: , Tags: , , ,

    Description

    Model SC6D0N4 HDMI
    Max. FPS 1920×1080p@300fps
    Recording Mode Hardware Compression
    4G Support LTE
    LTE FDD : Max 150Mbps ( DL ) / Max 50Mbps ( UL )
    LTE TDD : Max 130Mbps ( DL ) / Max 35Mbps ( UL )

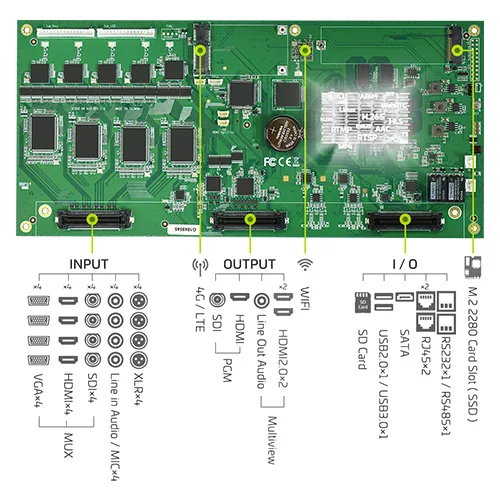

    Input Interface Video
    4×HDMI / SDI / VGA
    Output Interface Video
    2×HDMI
    1×HDMI or SDI ( 1080P PGM )

    Audio
    1×3.5mm Stereo Analog Audio ( 3.3Vp-p )

    Video Feature H.265 / H.264 / AVC, Baseline / Main / High Profile
    Configurable Bit Rate Up to 64Mbps

    Supported Input / Output Resolutions:
    1920×1080p@60/50fps
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps
    1280×1024p@60fps
    1280×960p@60fps
    1024×768p@60fps
    800×600p@60fps
    640×480p@60fps
    720×480p@60fps
    720×576p@50fps
    720×480i@60fps
    720×576i@50fps

    3G-SDI
    1920×1080p@60/50fps

    HD-SDI
    1920×1080p@30/25/24fps
    1920×1080i@60/50fps
    1280×720p@60/50fps

    SD-SDI
    720×480i@60fps
    720×576i@50fps

    Audio Feature AAC-LC
    Configurable Bit Rate Range from 32Kbps to 384Kbps
    Sample Rate: 48KHz, 16bit Stereo
    Network Feature 2×RJ45 for 10/100/1000Mbps Ethernet
    DHCP Client
    Wifi : 802.11b / g / n
    Support Streaming Protocol RTSP Over UDP / TCP / Multicast / HTTP
    RTMP Public ( Web Portal )
    **TS Over IP
    **HLS
    ** Optional by Customer Request
    Misc. Features 512MB Flash
    2GB Memory
    Web UI for system configuration
    Firmware upgradable
    LED indicator
    Status with Power Recycle
    1×USB3.0
    1×USB2.0
    1×RS232 + 1×RS485 / RS232
    1×M.2 Connector ( For SSD )
    1×MiniCard Connector ( For 4G / LTE Module )
    1×SD Card Slot ( SDIO Supported )
    1×SATA Connector
    1×I2C Data Line
    Record Format MP4 / TS / AVI / MOV

    Additional information

    Resolution

    1080p60/50

    Number of Input Channels

    4 Channels

    Recording Mode

    Hardware Compression

    Streaming Protocol

    NDI, RTSP / RTMP / TS / HLS

    Video Input

    All In One / Multi / HDV

    Video Output

    HDMI, RJ45 – Copper, SDI
