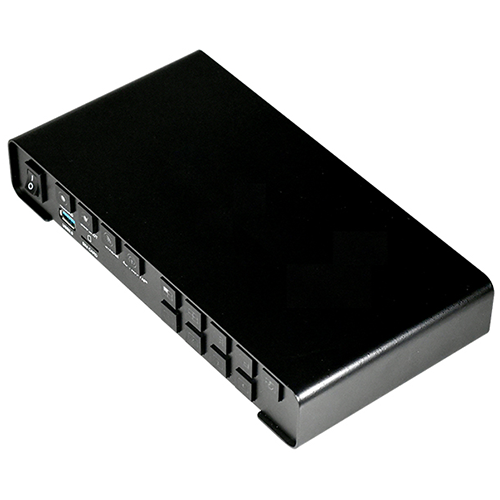

4 Channel 1080p60 SDI H.26X over Ip Streaming Solution - SC6D0N4 SDI

    For further assistance or to receive an offer for this product, please fill out the contact form below.

    Company/Organisation

    Your Name

    Your Email

    Country

    Product Name

    Market Application

    Your Message

    By clicking Send, you agree to our Terms and Data Use Policy.

    SKU: SC6D0N4_SDI Categories: , Tags: , , , ,

    Description

    Model SC6D0N4 SDI
    Max. FPS 1920×1080p@300fps ( 4 SDI + 1 PGM Channels )
    Recording Mode Hardware Compression
    Input Interface Video
    4×SDI

    Audio
    4×3.5mm

    Output Interface Video
    1×HDMI ( Multiview / PGM )
    1×SDI ( PGM )

    Audio
    1×3.5mm

    Video Feature H.264/AVC, Baseline/Main/High Profile
    Configurable Bit Rate Up to 64Mbps

    Support Input Resolutions:
    1920×1080 ( P60/P50/P30/P25/P24/i60/i50 )
    1280×720 ( P60/P50)

    Support Output Resolutions:
    Resize Range from 160×120 to 1920×1080 ( P60 )

    Audio Feature AAC-LC
    Configurable Bit Rate Range from 32Kbps to 384Kbps
    Sample Rate: 48KHz, 16bit
    Network Feature 1×RJ45 for 10/100/1000Mbps Ethernet
    DHCP Client
    Support Streaming Protocol RTSP over UDP/TCP/Multicast/HTTP
    RTMP ( Publish)
    TS over IP
    HLS
    Misc. Features Web UI for system configuration
    Firmware upgradable
    LED indicator
    Status with Power Recycle
    2×USB2.0 ( For Keyboard and mouse usage )
    1×USB3.0 ( For external storage usage )
    1×RS232 + 1×RS485

    Main function switch:
    Record
    Snapshot
    Stream

    PGM mode switch:
    Full screen
    Quadview
    Picture by picture
    Picture in picture
    PGM Loop

    Full screen switch:
    Channel 1
    Channel 2
    Channel 3
    Channel 4

    Record Format MP4 / TS / AVI / MOV
    System Requirement
    Power Supply DC input : 12V / 2A
    Power consuming : 19.475W maximum Estimated

    PGM Seamless Switcher

    Various Transceiver / Receiver

    Customize Software Interface

    Additional information

    Resolution

    1080p60/50

    Number of Input Channels

    4 Channels

    Recording Mode

    Hardware Compression

    Streaming Protocol

    NDI, RTSP / RTMP / TS / HLS

    Video Input

    SDI

    Color

    Black

    Video Output

    HDMI, RJ45 – Copper, SDI
