Description
| Model | SC710N2-L HDMI2.0 |
|---|---|
| Max. FPS | 4096×2160p@60/50fps in → 4096×2160p@60/50fps out |
| Recording Mode | Software Compression, Real-Time Mode |
| Interface | PCIe×4( Gen2 ) |

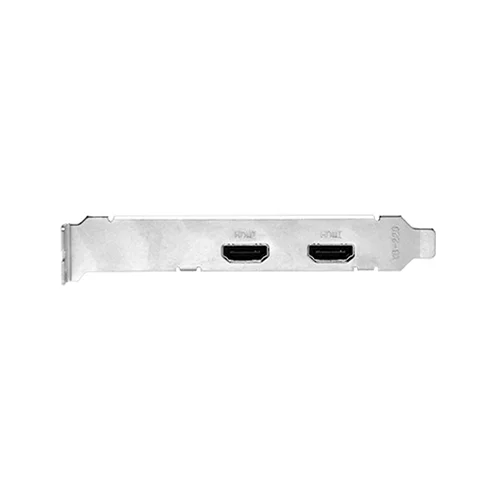

| Video Input | 2×HDMI 2.0 |
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32, V410, Y410, P010, P210 |
| Video RAW Data Resolution | HDMI 2.0 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Recording Video Format | H.264 ( Software Compression ) |
| Recording Video Resolution | HDMI 2.0 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Audio Input | 2×HDMI Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| Multiple Cards | ∞ |
| SDK | Support API: DirectShow, V4L2, FFmpeg, Gstreamer Support Language: C++, C#, .NET, Visual Basic, Qt, Delphi |
| System Requirement | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
