Description

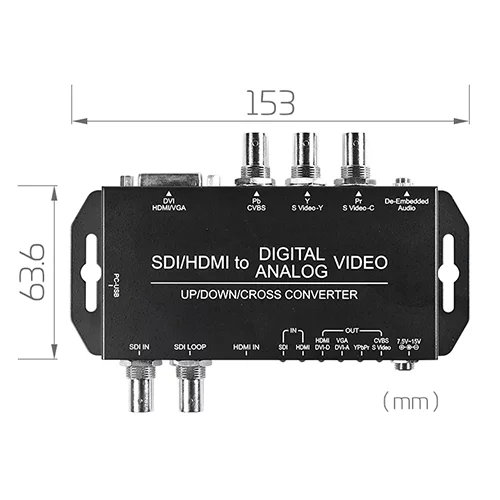

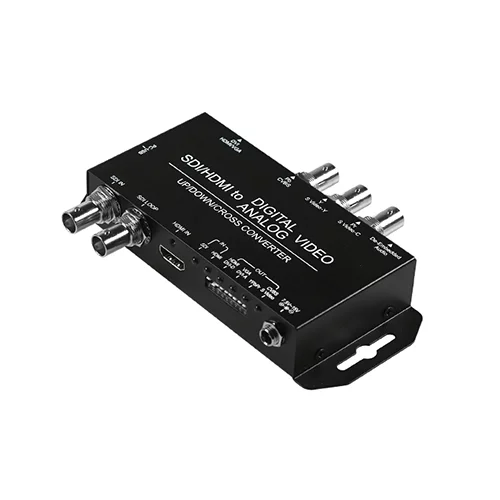

| Model | SDI/HDMI to Multi |
|---|---|
| Description | Convert from 3G/HD/SD-SDI or HDMI input to DVI-D/VGA or Component/S-Video/Composite video output |
| Feature | Auto source format detection (3G/HD/SD) Built-in up/down conversion engine with anti-aliasing Simultaneous 1×DVI-I/Component/S-Video/Composite and 2×SDI output Re-clock function (for SDI output) Hot-keys for video mode and device configurations Mini-USB port for configurations and software upgrade Region of interest Test pattern Test label |
| Input Interface | SDI×1 HDMI×1 |

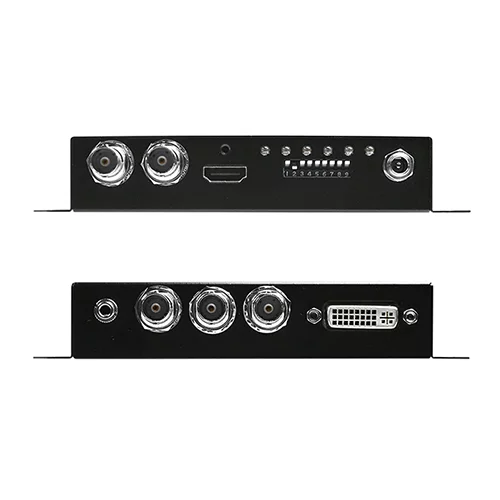

| Output Interface | DVI-I×1 (convertible to VGA) BNC×3 for Component / S-Video / Composite 3.5mm Phone jack for analog audio SDI×1 (Loop-through) |
| Supported Video Input Format | SDI 1080p60/50, 1080i60/50, 1080p30/25/24, 720p60/50 1080p59.94, 1080i59.94, 720p59.94, 1080p29.97, 1080p23.98 525i, 625i |
| Supported Video Output Format | Composite / SVideo NTSC / PAL Component 480i, 576i, 480p, 576p 720p, 1080i, 1080p DVI / VGA 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz 1366×768@60Hz, 1400×1050@60Hz, 1600×1200@60Hz |
| Audio Input Format | Up to 8 channels, 24bit, 48KHz |
| Audio Output Format | Stereo, 16bit, 48KHz |
| Plug & Play | |
| DC In | 7.5V ~ 15V |
